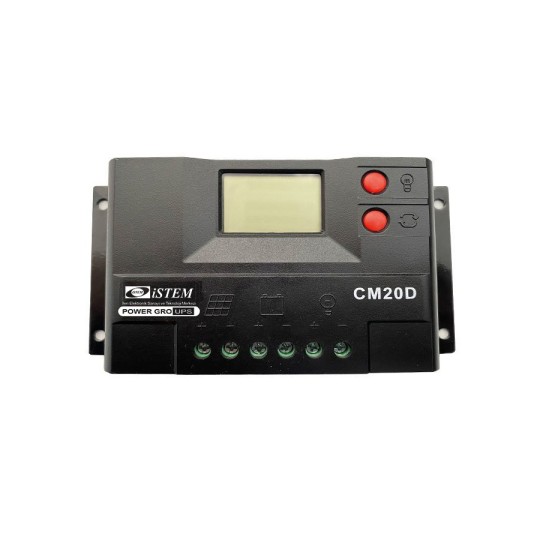

20 AMPER SOLAR ŞARJ REGÜLATÖRÜ DİJİTAL
Teknik Bilgi:
LCD EKRANLI
KOLAY KULLANIM BUTONLARI
12 / 24 VOLT OTOMATİK
PWM ŞARJ MODU
AYARLANABİLİR ŞARJ DEŞARJ
AYARLANABİLİR YÜK ÇALIŞMA MODU
Teknik Data:
Model CM20D
Rated current 10A12V24V 20A12V24V
Rated voltage 12V/24V Automatic Identification
Voltage of solar panel ≤50V
Floating charge 13.8V/27.6V
Under-voltage protection 10.7V/21.4V
Under-voltage recovery 12.6V/25.2V
Boost voltage b01 Sealed 14.4V /28.8VV14.4V/28.8V (Duration:2hours)
b02 Gel14.2V/28.4V
b03 Flooded 14.6V/29.2V
Open circuit losses ≤13mA
Charge and discharge voltage drop <0.2V|<0.1V
Charging mode PWM mode
Temperature compensation -4mV/Cell/℃(to be customized)
Specification of the cables ≤5# AWG (6mm2)
Working temperature -20℃~60℃
Storage temperature -30℃~70℃
Temperature requested ≤90%,No condensation
Dimension 88 mm×160 mm×37 mm
diameter of mounting hole 64 mm×150 mm --Φ5
Weight 230g
